| 品牌：宇思特 | 型号：DN100 | 材质：塑料 |
| 连接形式：法兰 | 结构形式：直角式 | 公称通径：100mm |
| 适用介质：水 | 驱动方式：气动 | 压力环境：常压 |
| 工作温度：常温 | 标准：国标 | 流动方向：双向 |
| 零部件及配件：球体 | 用途：调压 | 类型(通道位置)：二通式 |
| 规格：口径100 |

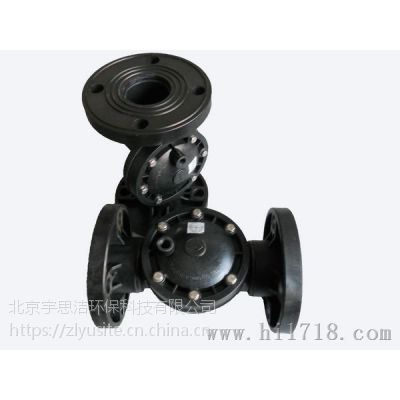

V型塑料隔膜阀(批发供应隔膜阀)V型隔膜阀--诚信厂家供应商---北京宇思特水处理设备有限公司13717549716.
V-shaped plastic diaphragm valve (wholesale supply diaphragm valve) V diaphragm valve, integrity manufacturers suppliers - suzhou jie MingShui processing technology co., LTD
V型塑料隔膜阀的工作特点：●结构简单，水力性能优异
V-shaped plastic diaphragm valve work features: low simple structure and hydraulic performance
●可靠的防腐性能
Low reliable anticorrosive performance
●重量轻，价格低
Light weight, low price
●维护量少，可靠性高
Low maintenance quantity is little, high reliability
V型塑料隔膜阀的工作原理：来水压力直接通过密封隔膜开关阀门，隔膜上腔有压时，隔膜切断进水关闭阀门;
The working principle of v-shaped plastic diaphragm valve: water pressure switch directly through the seal diaphragm valve, diaphragm chamber pressure, the diaphragm to cut off the water shut-off valve;
控制腔泄压时，利用来水压力自动顶开隔膜打开阀门。
The control cavity pressure, using water pressure diaphragm valve open up automatically.
阀门活动部件为增强橡胶隔膜，在水通路上没有阀轴、密封等，阀体采用增强尼龙材料，可配合各种电磁阀、手动阀、减压阀等实现各种控制功能。
Valve is the only moving part to enhance the rubber diaphragm and valve shaft on the water channel, seal, etc., the body USES reinforced nylon material, can cooperate with various kinds of electromagnetic valve, manual valve, pressure reducing valve to realize all kinds of control functions.
V型塑料隔膜阀的工作原理：来水压力直接通过密封隔膜开关阀门，隔膜上腔有压时，隔膜切断进水关闭阀门;
The working principle of v-shaped plastic diaphragm valve: water pressure switch directly through the seal diaphragm valve, diaphragm chamber pressure, the diaphragm to cut off the water shut-off valve;
控制腔泄压时，利用来水压力自动顶开隔膜打开阀门。
The control cavity pressure, using water pressure diaphragm valve open up automatically.
阀门活动部件为增强橡胶隔膜，在水通路上没有阀轴、密封等，阀体采用增强尼龙材料，可配合各种电磁阀、手动阀、减压阀等实现各种控制功能。
Valve is the only moving part to enhance the rubber diaphragm and valve shaft on the water channel, seal, etc., the body USES reinforced nylon material, can cooperate with various kinds of electromagnetic valve, manual valve, pressure reducing valve to realize all kinds of control functions.
V型隔膜阀规格尺寸如下：
| V型隔膜阀安装尺寸 阀门型号L(mm)H1(mm)H2(mm)DN40235145145DN50235160160DN65250180180DN80330230195DN100383250220说明：以上均为法兰口阀门的数据，材质是增强尼龙。 V型隔膜阀安装尺寸阀门型号L(mm)H1(mm)H2(mm)DN125535360250DN150430360285说明：以上是粘接口且带法兰的V型隔膜阀的数据，材质是PVC。
隔膜阀系列：——二位三通隔膜阀----Y型塑料隔膜阀----V型隔膜阀 如有需要，欢迎致电咨询！！ Diaphragm valve diaphragm valve series: - two tee - Y - V type plastic diaphragm valve diaphragm valve if necessary, welcome to call adv***ry!!!!! V型塑料隔膜阀的工作特点：●结构简单，水力性能优异 V-shaped plastic diaphragm valve work features: low simple structure and hydraulic performance ●可靠的防腐性能 Low reliable anticorrosive performance ●重量轻，价格低 Light weight, low price ●维护量少，可靠性高 Low maintenance quantity is little, high reliability |
